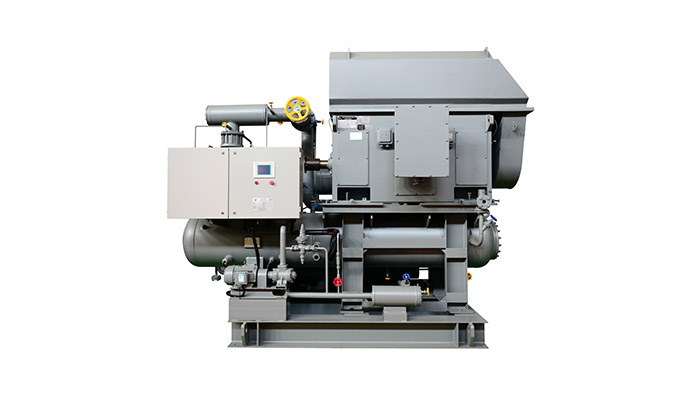

Product Model: LG12M—LG50L series
There are more than 20 models combined with different leads;
Exhaust Volume Range: 285-14000m³/h;
Compression Working Fluid: R717, R507, R404, etc;
Control Mode: Automatic, Manual and Semi-Automatic;
Cooling Capacity Under Nominal Condition:
Nominal Cooling Capacity:
High Temperature Working Condition (+40/+5℃) 316/239-15523/11740KW;
Medium Temperature Working Condition (+40/-10℃) 175/161-8597/7910KW;
Low Temperature Working Condition (+40/-35℃) 62/63-3046/3095KW.
The compressor has a full type spectrum and the displacement range is 285 m3/h ~14000m/h;
It is widely used and can be operated under high temperature, moderate temperature and low temperature conditions;
The unit is suitable for R717, R507A, R404A and other working mediums;
The unit can be customized according to the special needs of users;
The standard confiquration control mode is automatic.
Applicable Conditions
Refrigerant | R717A | R507A |
Discharge Pressure (MPa) | <=1.67 | <=1.95 |
Suction Pressure (MPa) | -0.03 ~0.586 | |
Oil Pressure (MPa) | 0.1 ~ 0.3 Higher Than Discharge Pressure | |
Oil Temperature (ºC) | 30~65 | |
Cooling Water InletTemperature (ºC) | 15~33 | |
Cooling Water Flow Deviation | +-10% |
